FILTRATION SYSTEMS
Series "Bergamo"
Filtration Systems

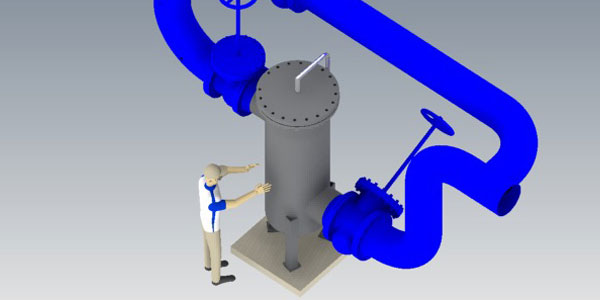

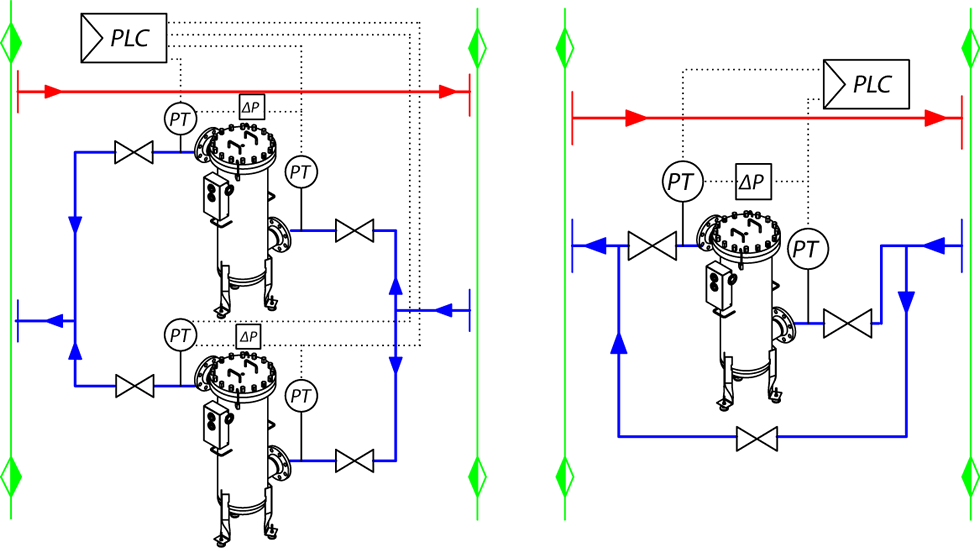

Bag type Filtration Systems for district heating networks and plants designd in accordance with network nominal flow rates and degree of filtration desired. The system is mounted as "package" with single or twin body for flow rate and maintenance reasons. It comes complete with control, metering and safety devices, as well as fouling meter and transmitter suitable for integration into existing supervisory systems via analog and digital standard and unified signals. The filtration degree can also be varied along operation depending on the fouling observed.
- Nominal flow rate: 35 to 2000 m3 / h.
- Filtering degree: 1 to 1000 μm.
- Pressure drop: <0.3 bar.
- District Heating max Temperature: 135 ° C.
- Max pressure: 25barg
- Certifications: CE / PED.
Range
Mod. Bergamo
District Heating networks Bag Filters groups.
| POS. | Model |
Nominal Flow Rate (m³/h) |
in parallel filters |
Capacità S/D (l) |
h (mm) |
d (mm) |
BOCCHELLI in/out |
Hydraulic Design |
Design Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| 122 | Bergamo 35 | 35 | 1/2 | 73/146 | 1184 | 324 | DN100 | PN10÷PN25 | 135 |
| 123 | Bergamo 70 | 70 | 1/2 | 156/146 | 1250 | 457 | DN125 | PN10÷PN25 | 135 |
| 124 | Bergamo 100 | 100 | 1/2 | 156/312 | 1250 | 457 | DN125 | PN10÷PN25 | 135 |
| 125 | Bergamo 150 | 150 | 1/2 | 156/312 | 1250 | 457 | DN125 | PN10÷PN25 | 135 |
| 126 | Bergamo 300 | 300 | 1/2 | 390/312 | 1800 | 558 | DN300 | PN10÷PN25 | 135 |
| 127 | Bergamo 500 | 500 | 1/2 | 390/780 | 1800 | 558 | DN300 | PN10÷PN25 | 135 |
| 128 | Bergamo 1000 | 1000 | 1/2 | 765/780 | 2410 | 711 | DN400 | PN10÷PN25 | 135 |
| 129 | Bergamo 2000 | 2000 | 2 | 1530 | 2410 | 711 | DN400 | PN10÷PN25 | 135 |
Working condition
| HOT WATER | SUPERHEATED WATER | COOLING | |
|---|---|---|---|
|
THERMAL DESIGN DISCTRICT HEATING CIRCUIT |
90/65°C | 115/65°C | 7/11°C |
|
MECHANICAL DESIGN DISCTRICT HEATING CIRCUIT |
PN16÷PN25 | PN16÷PN25 | PN16÷PN25 |
|
THERMAL DESIGN SUBSTATIONS SECONDARY CIRCUIT |
85/55°C | 85/55°C | 14/8°C |
|
NOMINAL PRESSURE LOSS SUBSTATIONS PRIMARY AND SECONDARY CIRCUITS |
10/3 w.c.m. | 10/3 w.c.m. | 10/3 w.c.m. |
|
FLUID SPEED DISCTRICT HEATING CIRCUIT |
0,5÷2 m/s | 0,5÷2 m/s | 0,5÷2 m/s |
| CENTRAL CONDUIT PUMPS HEAD | 0,5÷9 bar | 0,5÷9 bar | 0,5÷9 bar |
| PRESSURE LOSS POWER PLANT INNER CIRCUIT | 0,5÷1,5 bar | 0,5÷1,5 bar | 0,5÷1,5 bar |
